Once clinicians understand what a needle‑free connector is and why it matters, the next logical step is to explore how connector design influences clinical performance. Although needle‑free connectors may appear similar externally, internal design differences can significantly affect infection risk, ease of disinfection, blood reflux, and catheter patency.
At a fundamental level, needle‑free connectors fall into two broad design categories: split septum connectors and mechanical valve connectors, each with different benefits, challenges, and implications for clinical use. Understanding the differences between these designs helps clinicians make informed choices and supports safer, more consistent vascular access practice.

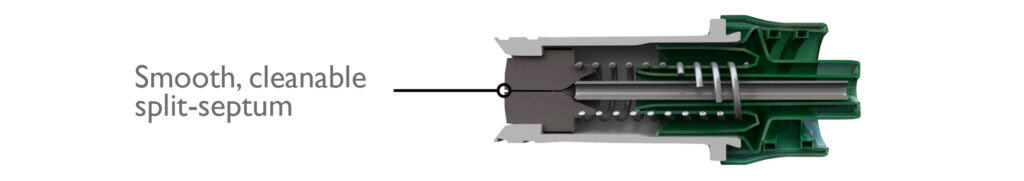

Split Septum Connectors: Simple by Design
Split septum connectors are often described as simple or non‑mechanical devices. They consist of a soft, self‑sealing silicone or rubber septum that opens when accessed with a standard Luer device and closes automatically once the device is removed.
A key characteristic of split septum connectors is the absence of moving internal parts within the fluid pathway. This creates a straight, direct pathway from the connector into the catheter lumen, which supports effective flushing and reduces areas where blood or microorganisms can accumulate.
Clinical evidence suggests that split septum connectors are associated with lower rates of catheter‑related bloodstream infections (CRBSIs) compared with some mechanical valve designs, particularly those with more complex internal mechanisms. This difference is largely attributed to the simplicity of the design and the ease with which the access surface can be disinfected effectively.1,2,3
Because there is no internal valve, split septum connectors are often considered easier to clean, easier to flush and maintain and therefore associated with lower infection rates

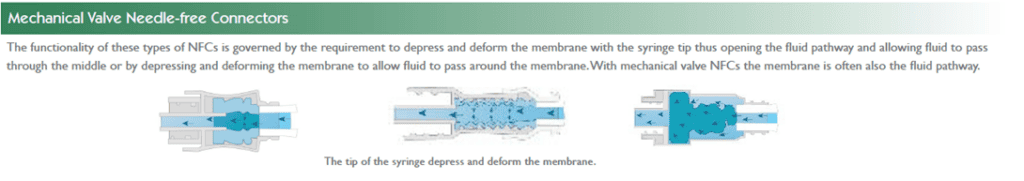

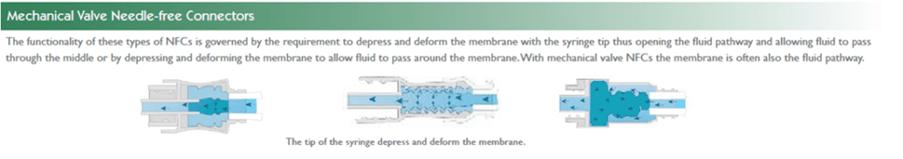

Mechanical Valve Connectors: Designed to Control Flow
Mechanical valve connectors use an internal valve mechanism that opens and closes in response to connection, disconnection, or pressure changes.
Mechanical valve connectors vary considerably in how they function. Some contain moving internal components, springs, or pressure activated elements that may introduce internal complexity within the fluid pathway. This complexity can create additional surfaces where blood, drug residue, or microorganisms may be retained if flushing or disinfection is suboptimal.
Several studies have reported higher CRBSI rates with certain mechanical valve connectors compared with split septum designs, even when infection‑prevention practices were reinforced.1,4 These findings have led some guideline bodies, including the CDC, to note that split septum connectors may be preferred over certain mechanical valve designs due to infection risk considerations.3 It is important to note that not all mechanical valves behave in the same way. Performance depends on the specific internal design rather than the category alone, highlighting the importance of understanding how a device functions in practice.
Benefits and Challenges of Each Design
Both split septum and mechanical valve connectors offer distinct advantages, as well as potential challenges, depending on how and where they are used.
Split septum connectors benefit from a simple, non‑mechanical design with a straight internal fluid pathway. This simplicity supports effective flushing and easier disinfection and has been associated with lower infection rates in several observational studies.1,2,3 However, because they do not actively control fluid movement, split septum connectors rely heavily on consistent access technique and thorough hub disinfection to maintain safety. Mechanical valve connectors are designed to actively manage fluid flow.
At the same time, internal valve mechanisms can introduce added complexity within the fluid pathway. If access technique, flushing, or disinfection is inconsistent, this complexity may increase the risk of microbial retention or occlusion, depending on the specific valve design.1,4
For this reason, neither category can be considered inherently “good” or “bad” in isolation. Performance depends on the interaction between connector design, clinical practice, and the environment in which the device is used.
Ease of Disinfection: External Design Matters
Regardless of internal mechanism, the external access surface of a connector plays a critical role in infection prevention. Designs with a flat, smooth, gap‑free septum surface are easier to disinfect effectively using standard “scrub the hub” techniques.
Mechanical valve connectors with recessed features or uneven surfaces may increase the risk of inadequate cleaning, particularly if time pressures or technique variability are present. Simpler external designs support more reliable disinfection and reduce the risk of microbial ingress at the access point.2,3
Design Choice, Practice, and Clinical Outcomes
Evidence consistently shows that design alone does not determine outcomes. Complications such as infection or occlusion often arise from an interaction between device design and everyday clinical practice.
Connectors that are easy to understand, simple to disinfect, and consistent in their behaviour are more likely to support reliable use across a wide clinical workforce. This is particularly important in environments where multiple staff members access the same vascular device over long periods.
Understanding connector design therefore supports safer standardisation decisions, more effective education, and improved alignment between device behaviour and clinical practice.
Implications for Clinical Choice
When selecting a needle‑free connector, design type should be considered in the context of the clinical setting, staff familiarity, and desired outcomes. Simple designs with predictable behaviour may support safer use in environments with high staff turnover or frequent line access, while more complex designs may require focused education and strict adherence to flushing and disinfection protocols.
Standardising connector choice within a clinical area can also reduce variability in practice, minimise technique‑related errors, and improve overall reliability of care. Rather than focusing on design labels alone, clinicians and organisations benefit most from understanding how a connector behaves in everyday use and whether that behaviour aligns with local practice and patient needs.
Conclusion
Needle‑free connector design has a direct influence on how safely and consistently vascular access devices perform in practice. While split septum and mechanical valve connectors differ in structure and behaviour, their effectiveness depends on how well design aligns with disinfection, technique, and everyday clinical workflows. Understanding these differences enables clinicians and organisations to make informed choices that support standardised practice, reduce variability, and minimise avoidable complications. With this design foundation in place, the next article will explore fluid displacement and blood reflux, and why connector behaviour at connection and disconnection is critical for maintaining catheter patency.
Next in the Article Series
This article has focused on the fundamental design differences between split septum and mechanical valve needle‑free connectors. In the next article, we will build on this foundation by exploring fluid displacement and blood reflux, explaining how different connector designs influence intraluminal fluid movement and why this matters to prevent catheter occlusion and ensure long‑term device performance.
References
- Btaiche IF, Kovacevich DS, Khalidi N, Papke LF. The effects of needleless connectors on catheter‑related bloodstream infections. Am J Infect Control. 2011;39(4):277‑283.
- Rosenthal VD. Clinical impact of needle‑free connector design: a systematic review of literature. J Vasc Access. 2020;21(6):847‑853.
- O’Grady NP, Alexander M, Burns LA, et al. Guidelines for the prevention of intravascular catheter‑related infections. Clin Infect Dis. 2011;52(9):e162‑e193.
- Jarvis WR. Choosing the best design for intravenous needleless connectors to prevent bloodstream infection. Infect Control Today. 2010;14(7).
